SMOKE LUX EL
CPR305/2011
Smoke Lux EL natural smoke and heat exhaust ventilator compliant with UNI EN 12101-2, CE-marked according to CPR 305/2011.
Exclusively electrically operated at low voltage 24V / 48V.
Dual-opening function for smoke evacuation and daily ventilation.
Prepared for systems in accordance with UNI 9494-1/2017 – periodic inspection per UNI 9494-3/2014.
Classification: Re 300 / 10,000 – SL 500 / 1000 – WL 1500 – B 300 °C – T 00

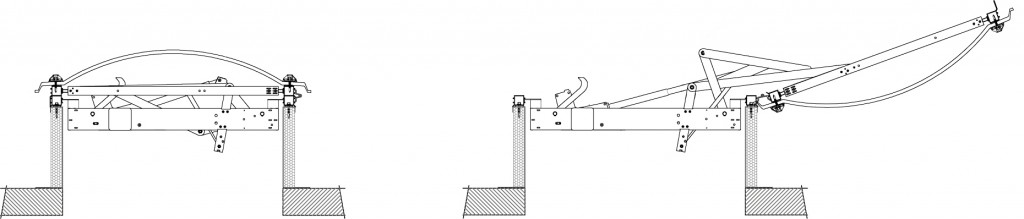

Operated by a control unit powered at 230V, converting supply voltage to 24V or 48V. Manufactured with a special aluminum profile consisting of frame and counterframe joined at the corners by dedicated brackets. Features a variable-stroke, low power consumption drive for actuating the sash tilting carriage up to a maximum opening angle of 165°.
Daily ventilation function with integrated stroke adjustment.
Can be controlled from ground level via a control panel for emergency operation and ventilation.
Supplied complete with gaskets and installation accessories.
Note: (Control unit and control panel excluded)
Smoke Lux EL is a smoke and heat exhaust ventilator exclusively powered by low-voltage electric energy.
It can be operated by a control unit powered at 230V, equipped with backup batteries that convert the supply voltage to 24V or 48V, at the client’s discretion.
The 48V power supply allows the creation of a system requiring a smaller cable cross-section compared to traditional 24V systems.
Smoke Lux EL is free from components that may deteriorate or expire over time, such as CO₂ cartridges, thermal valves, pyrotechnic or electromagnetic actuators, or thermo-sensitive vials.
Mandatory maintenance or periodic inspections required by regulations are therefore reduced to a simple ground-level functional test, without the need for personnel to access the roof and without costs related to component replacement, resulting in a significant reduction in operating expenses.
In the event of accidental opening, Smoke Lux EL can be closed from ground level simply by using the closing button on the control unit.
In case of power failure, the backup batteries in the control unit ensure up to 24 hours of autonomy.
Smoke Lux EL can be used both as a smoke and heat exhaust ventilator and as a standard opening for daily ventilation, via an open/close button connected to the control unit, without the need for additional systems and using the same connections as those for smoke evacuation.
It can also be connected to a wind and rain management control unit.
